WebSite : PageHome > Products >Marine
Gearbox |
|
|

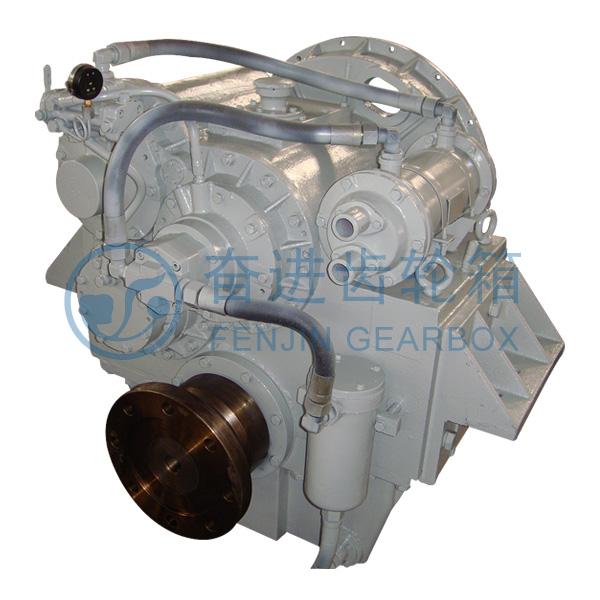

Marine gearbox T600A |
| Power/speed(kw/rpm):4.4/1000~9.2/2100 |
| Ratio(i)
|
6.06 |
6.49 |
6.97 7.51 |
8.04 |
8.66 |
9.35 |
| Rate
(kw/rpm)
|
high elastic
coupling
|
0.44 |
0.40 |
0.37 |
0.33 |
0.29 |
0.28 |
| toothed rubber
|
0.40 |
0.36 |
0.33 |
0.30 |
0.26 |
0.25 |
|
| Rated thrust propeller:90KN |
| Center distance:415mm |
| Bell housing: SAE00 0 |
| Flywheel:SAE21 18 16 (14) |
| L×W×H:805×1094×1271mm |
| Net weight:1600kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: KTA38-M940 / TBD234V16 / CAT3508TA…
|
| |

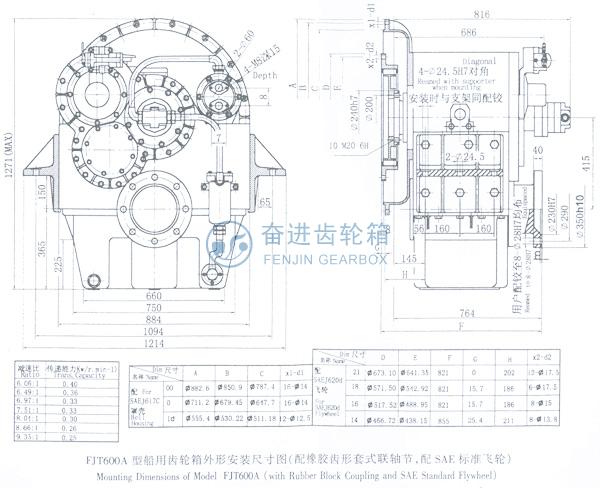

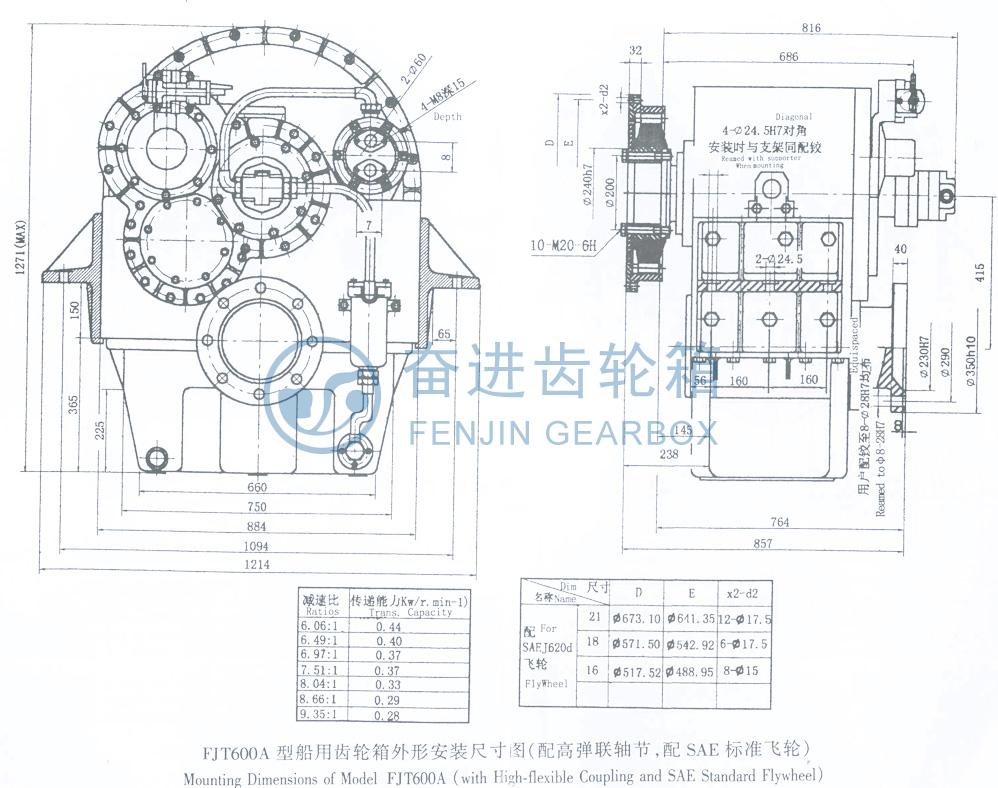

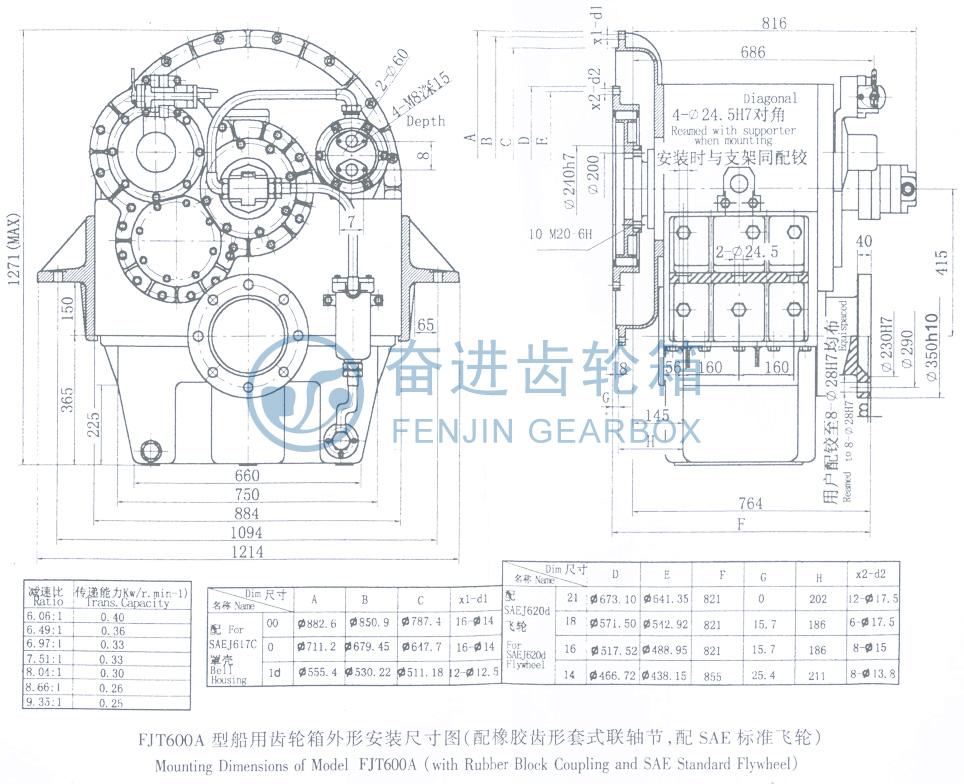

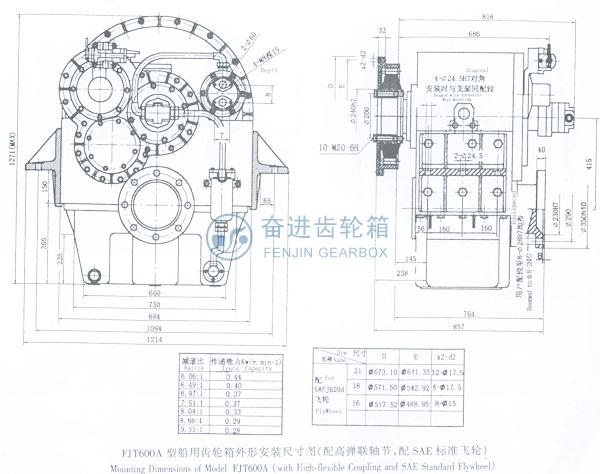

| Design Of Marine gearbox T600A |
|
| Design Of Marine gearbox T600 |
|
|
 |
|
