WebSite : PageHome > Products >Marine
Gearbox |
|
|

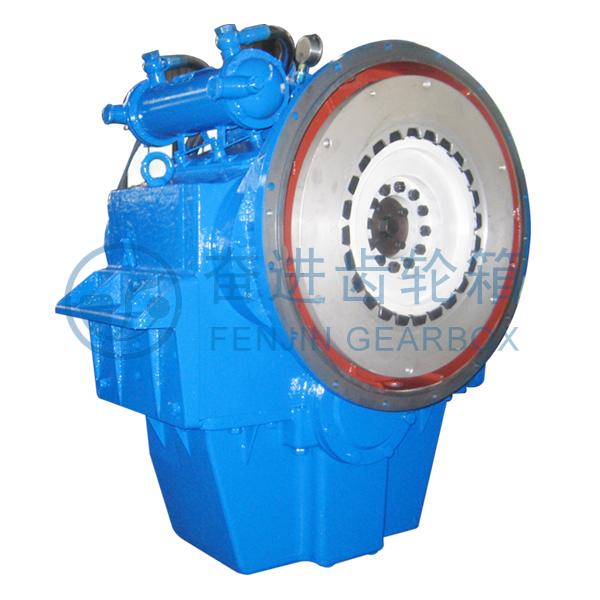

Marine gearbox T300 |
| Power/speed(kw/rpm):243/1000~558/2300 |
| Ratio(i)
|
6.03 6.65 7.04
|
7.54 8.02 |
| Rate(kw/rpm) |
0.243 |
0.221 |
|
| Rated thrust propeller:70KN |
| Center distance:355mm |
| Bell housing: SAE0 1 |
| Flywheel:SAE18 16 14 |
| L×W×H:640×920×1100mm |
| Net weight:1120kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: CAT3412T / KTA19-M6000 / TBD234V12…
|
| |

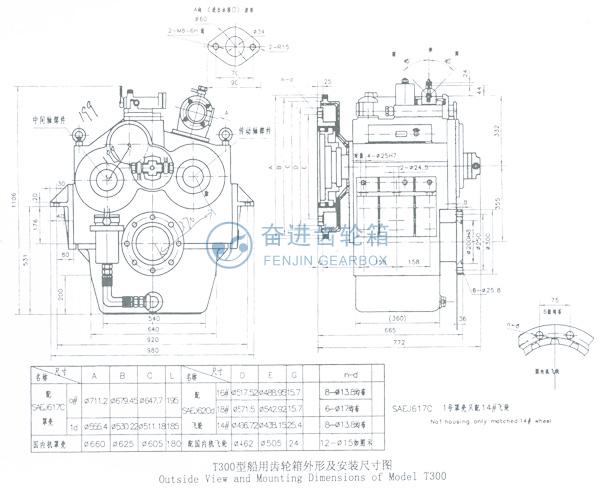

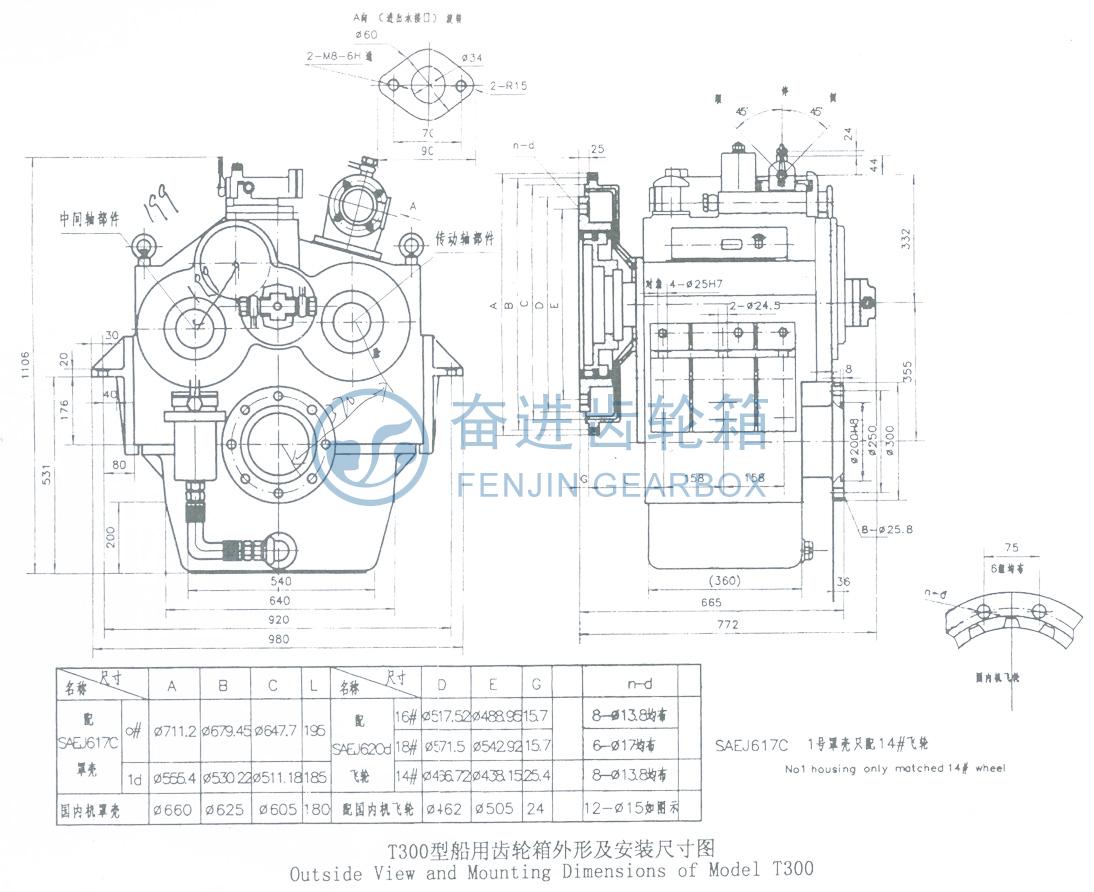

| Design Of Marine gearbox T300 |
 |
| |
|
 |
|
