WebSite : PageHome > Products >Marine
Gearbox |
|
|

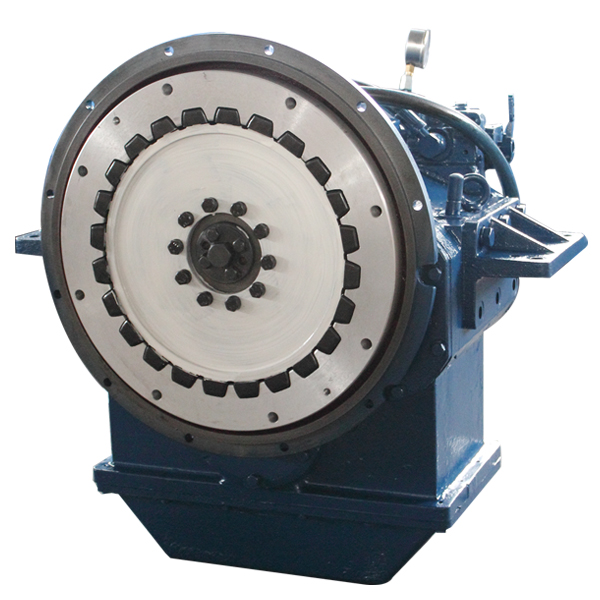

Marine gearbox MB242 |
| Power/speed(kw/rpm):100/1000~250/2500 |
| Ratio(i)
|
3.04 3.52 3.95 4.53 |
5.12 |
5.56 |
5.88 |
| Rate(kw/rpm) |
0.103
|
0.10
|
0.094
|
0.074
|
|
| Rated thrust propeller:30KN |
| Center distance:242mm |
| Bell housing:SAE1 2 |
| Flywheel:SAE14 11 1/2 |
| L×W×H:442×744×763mm |
| Net weight:385kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: NT-855-M240/CAT3406… |
| |
| Design Of Marine gearbox MB242 series |
|
| |
|
 |
|
