WebSite : PageHome > Products >Marine
Gearbox |
|
|
| Power/speed(kw/rpm):45/1500~75/2500 |
| Ratio(i)
|
1.97 2.52 3.03
|
3.54 |
3.95 |
4.5
|
5.06 |
5.47 |
| Rate(kw/rpm) |
0.030
|
0.026 |
0.023 |
0.019 |
0.016 |
0.013 |
|
| Rated thrust propeller:8.5KN |
| Center distance:142mm |
| Bell housing: SAE2 3 |
| Flywheel:SAE11 1/2" 10 |
| L×W×H:308×520×540mm |
| Net weight:140kg |
| Control type:push-and-pull flexible shaft |
| Partial engine: X4105BC / 495C / MWM D226-4… |
| |

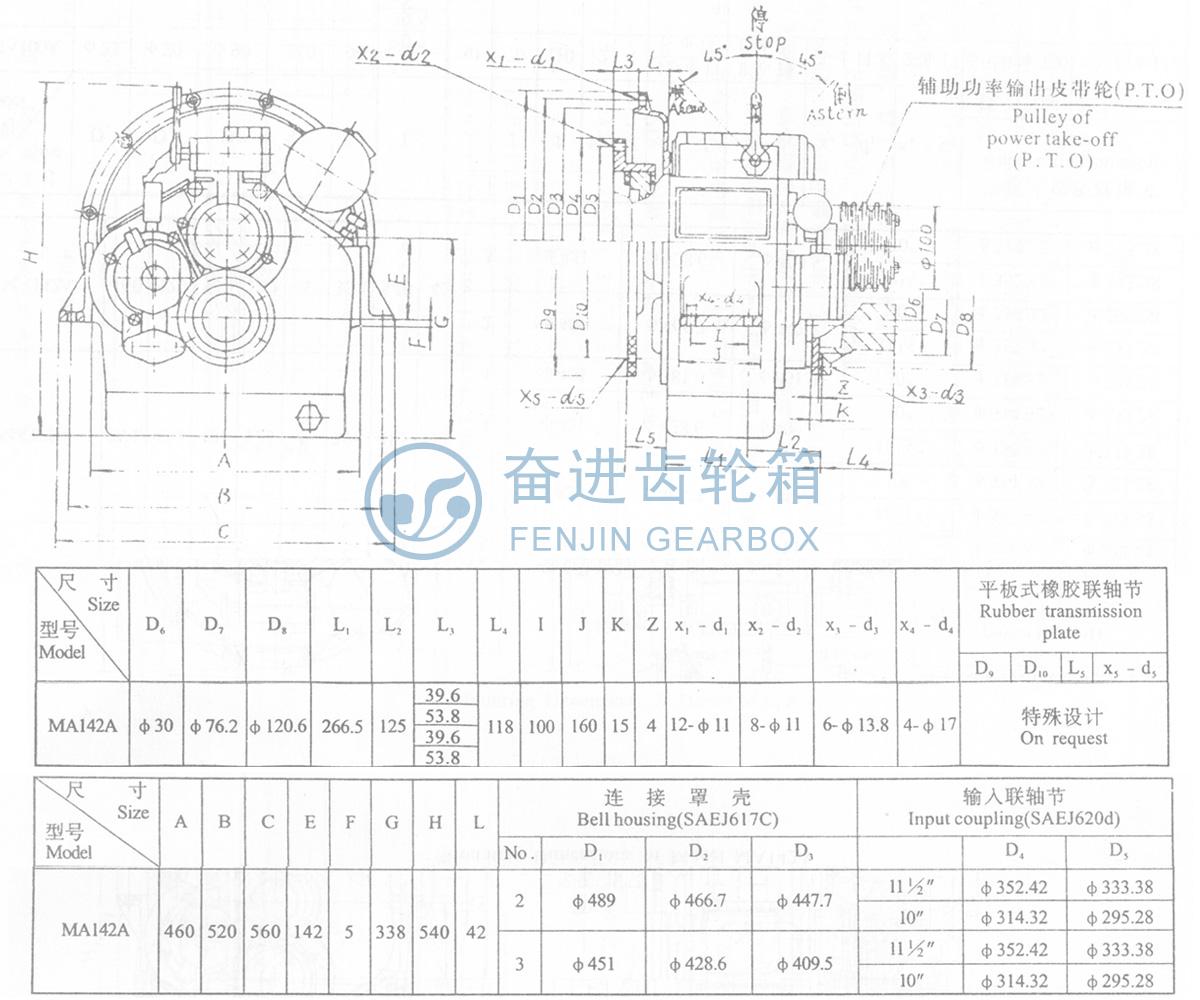

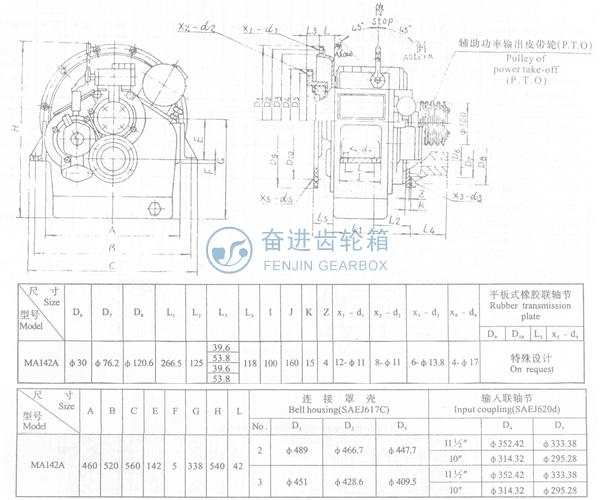

| Design Of Marine gearbox MA142 |
|
|
 |
|
