WebSite : PageHome > Products >Marine
Gearbox |
|
|

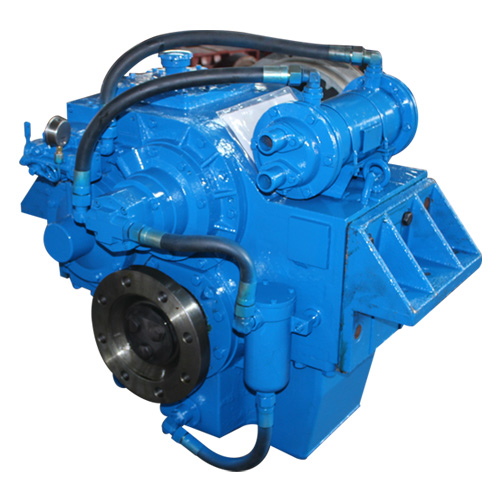

Marine gearbox D600A |
| Power/speed(kw/rpm):4.4/1000~9.2/2100 |
| Ratio(i)
|
4.18 4.43 |
4.70
|
5.0 |
5.44 5.71
|
| Rate
(kw/rpm)
|
high elastic
coupling
|
0.48 |
0.46 |
0.44 |
0.40 |
| toothed rubber
|
0.44 |
0.42 |
0.40 |
0.36 |
|
| Rated thrust propeller:90KN |
| Center distance:415mm |
| Bell housing: SAE00 0 |
| Flywheel:SAE21 18 16 (14) |
| L×W×H:745(779)×1094×1271mm |
| Net weight:1550kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: KTA38-M1045 / TBD604BV8 / CAT3508B
/ 6N165… |
| |

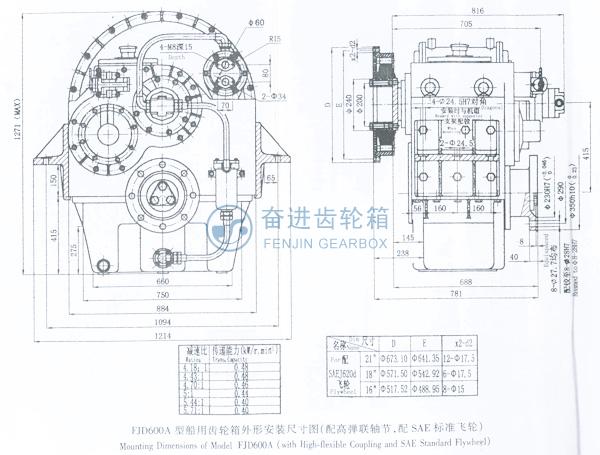

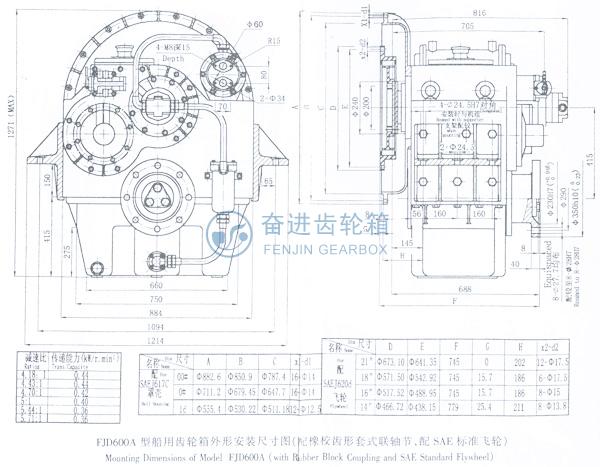

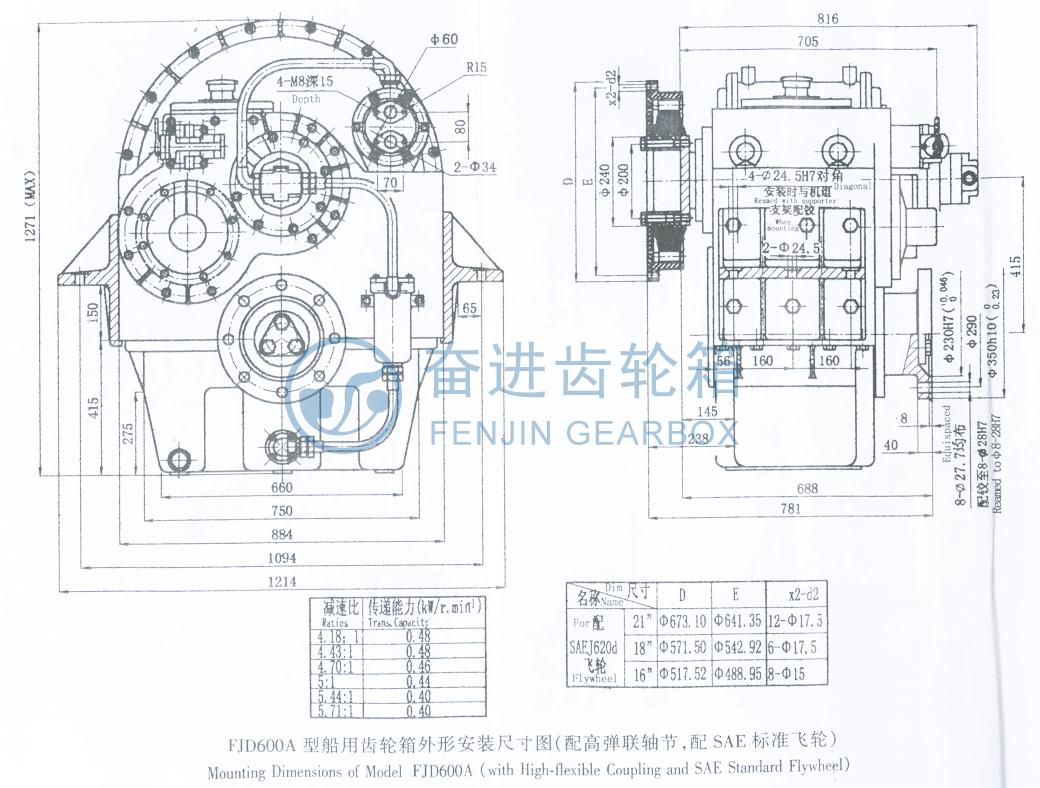

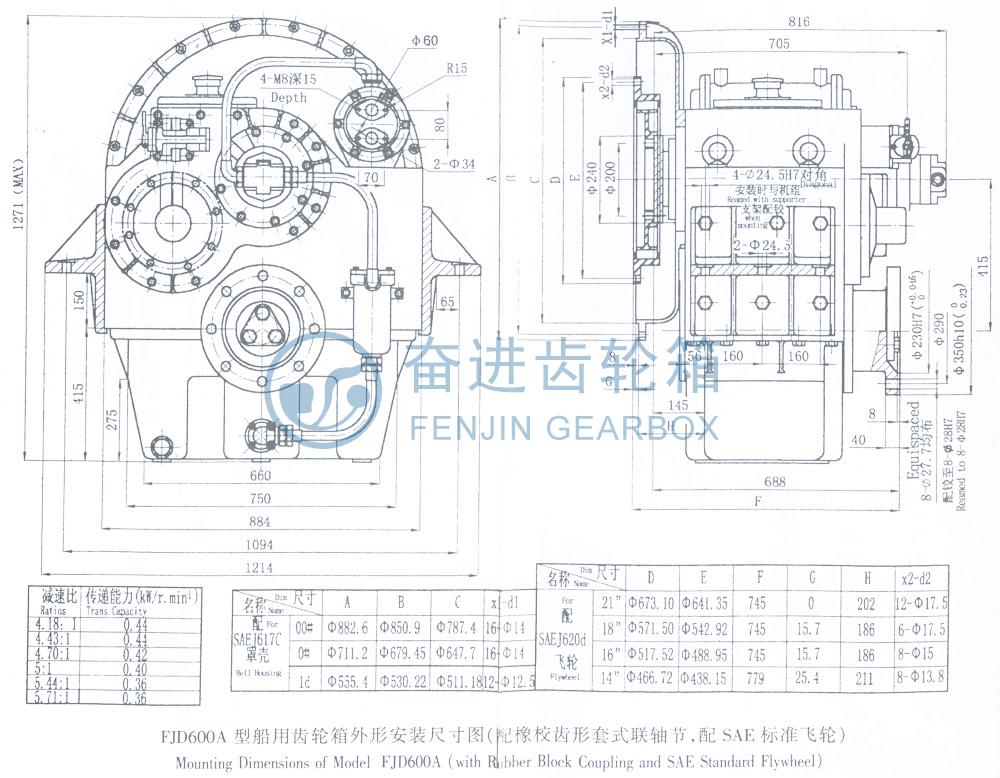

| Design Of Marine gearbox D600A |
|
| Design Of Marine gearbox D600 |
|
|
 |
|
