WebSite : PageHome > Products >Marine
Gearbox |
|
|

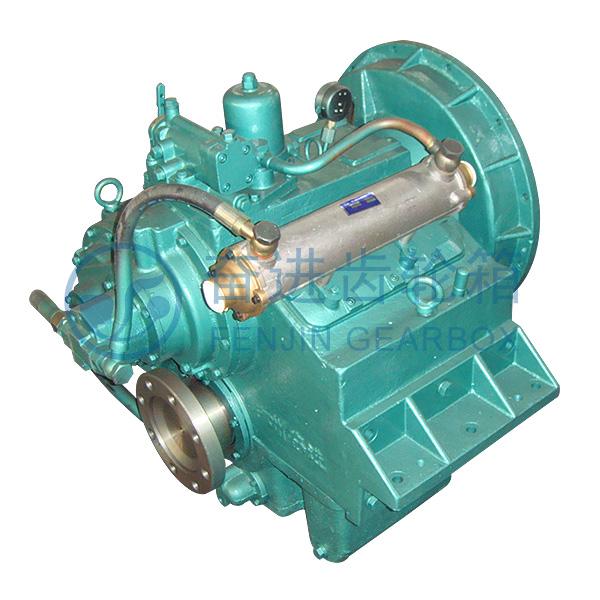

Marine gearbox 300 series |
| Power/speed(kw/rpm):257/1000~591/2300 |
| Ratio(i)
|
2.04 2.54
|
3.0
|
3.53
|
4.10
|
4.61 4.94
|
5.44
|
| Rate(kw/rpm) |
0.257 |
0.243 |
0.221 |
0.184 |
0.147 |
0.125 |
|
| Rated thrust propeller:50KN |
| Center distance:264mm |
| Bell housing: 12V135 12V150 SAE0 1 |
| Flywheel:12V135 12V150 SAE18 16 14 |
| L×W×H:638×870×864mm |
| Net weight:740kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 12V135 / 12V150 / 6160 / KTA19-M6000
/ TBD234V12… |
| |
| Design Of Marine gearbox 300 series |
|
| |
|
 |
|
