Marine gearbox 138 |
| Power/speed(kw/rpm):4.4/1000~9.2/2100
|
| Ratio(i)
|
2.52 3.0
3.57 4.05 4.45 |
| Rate(kw/rpm) |
0.11
|
|
| Rated thrust propeller:30KN |
| Center distance:180mm |
| Bell housing: 6135Ca SAE1 2 |
| Flywheel:6135Ca SAE14 11 1/2" |
| L×W×H:520×792×760mm |
| Net weight:360kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 6135Ca / NT-855-M240…
|
| |
|

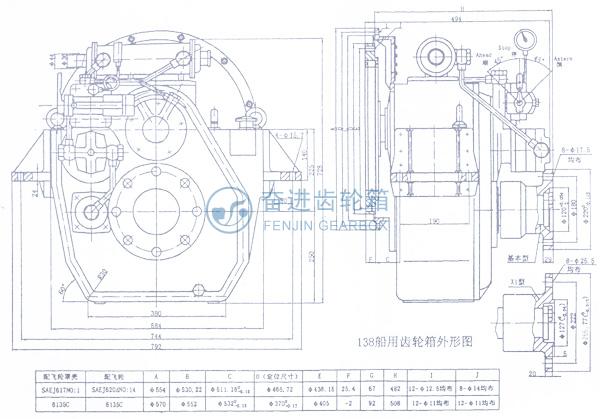

| Design Of Marine gearbox 138 |
|
|
 |
|
