WebSite : PageHome > Products >Marine
Gearbox |
|
|

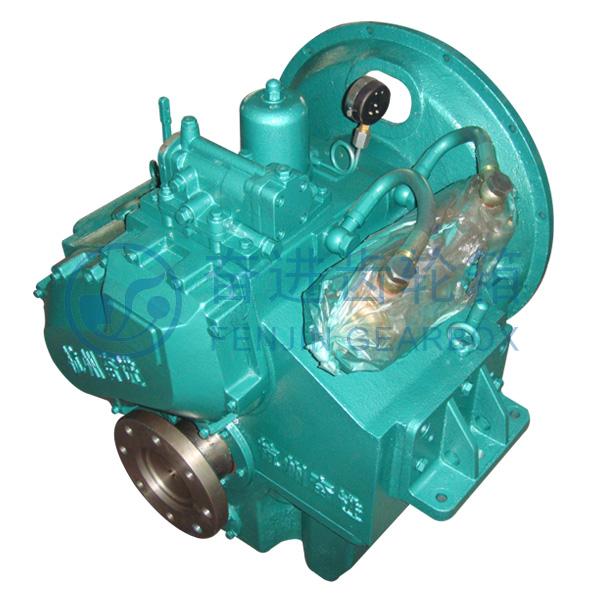

Marine gearbox 135A |
| Power/speed(kw/rpm):100/1000~200/2000
|
| Ratio(i)
|
2.03 2.59
3.04 3.62 4.11
|
4.65
|
5.06 |
5.47 |
5.81 |
| Rate(kw/rpm) |
0.10 |
0.093 |
0.088 |
0.077 |
0.070 |
|
| Rated thrust propeller:29.4KN |
| Center distance:225mm |
| Bell housing: 6135Ca SAE1 |
| Flywheel:6135Ca SAE14 |
| L×W×H:578×744×830mm |
| Net weight:470kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 6135Ca / H615 / NT-855-M240…
|
| |
|
| |

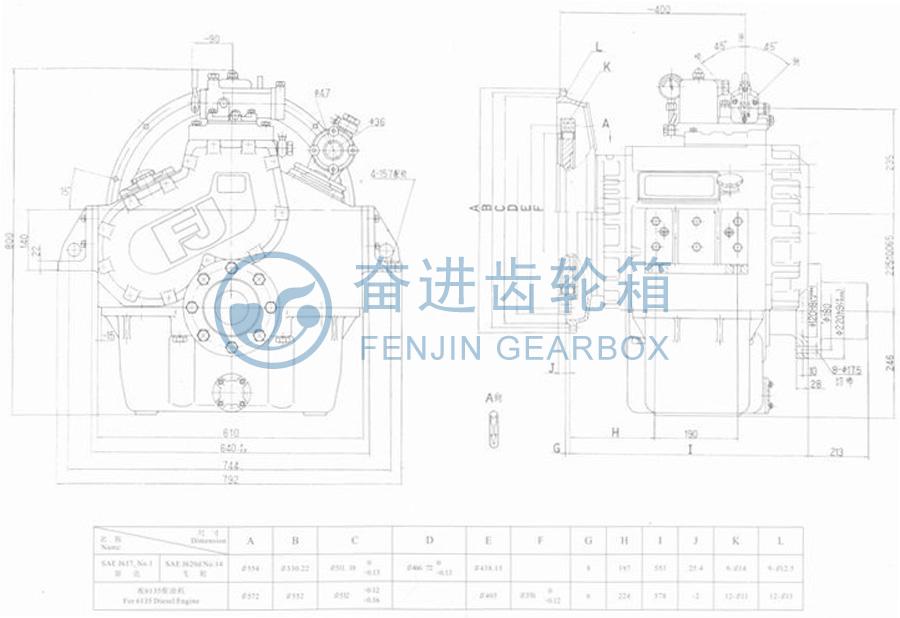

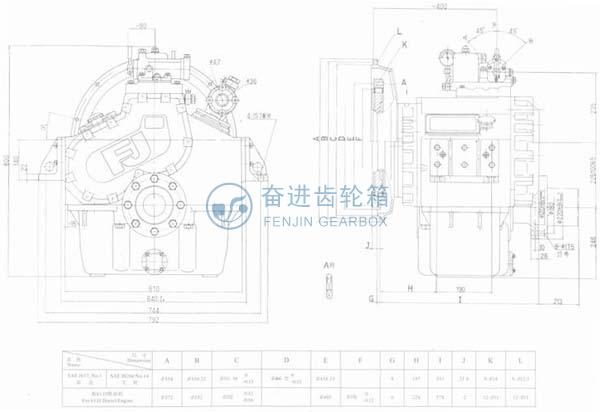

| Design Of Marine gearbox 135A |
 |
|
 |
|
