WebSite : PageHome > Products >Marine
Gearbox |
|
|

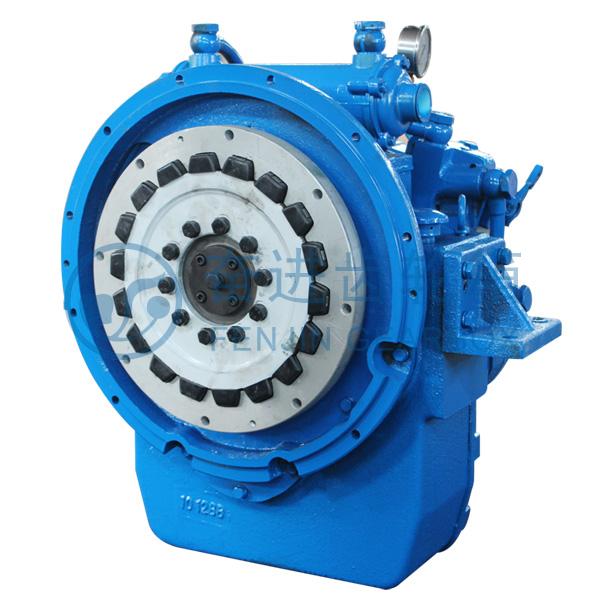

Marine gearbox 120C |
| Power/speed(kw/rpm):100/1000~250/2500 |
| Ratio(i)
|
1.48 1.94 2.45
|
2.96
|
3.35 |
| Rate(kw/rpm) |
0.10 |
0.090 |
0.080 |
|
| Rated thrust propeller:25KN |
| Center distance:180mm |
| Bell housing: 6135Ca SAE1 2 |
| Flywheel:6135Ca SAE14 11 1/2" |
| L×W×H:352×694×650mm |
| Net weight:225kg |
| Control type:push-and-pull flexible shaft(recommened),
electric control |
| Partial engine: 6135Ca / H615 / NT-855-M240 /
D234V8… |
| |
| Design Of Marine gearbox 120C series |
|
| |
|
 |
|
